Light Tower Type Robotic System

Light Tower Type Robotic System

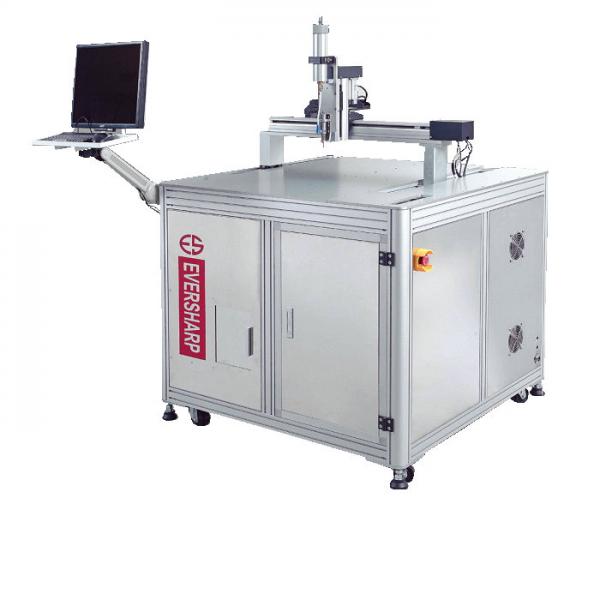

Light Tower Type Robotic System 600X600

Product ID: ES600SR

This product has the advantages of not only having automation consistency but also being light-weighted as well, thanks to the use of its light-weight aluminum design with a high-precision ball screw and linear guide. Using the efficiency of a computer as its control panel with the CCD, the user can easily plan the dispensing route on a computer screen. Our high precision recognition and positioning systems will automatically adjust the route accordingly, helping you reduce errors and save time. This system is not only suitable for adhesive dispensing; it can also be modified to accommodate other automation purposes. If you would like more information about modifications to suit your procedures, please contact us.


See more complete detail
Working Range 600/600/100(mm) Interpolation 3 Axis (3D Path)
Max Load Z 10kg Memory Unlimited/Support AUTOCAD-DXF
Velocity XYZ 0.1~800(mm/sec) Control Method Windows PC with CCD Vision
Resolution 0.001mm Vision System CCD Vision with Auto Alignment
Repeatability +/- 0.01mm IO Port 16 Input/16 Output
Motor System Japan Servo Motor Input Power AC220V 1Φ 300W
Drive Method XYZ Ball Screw Dimension W1150xL1150xH1000mm 350kg
