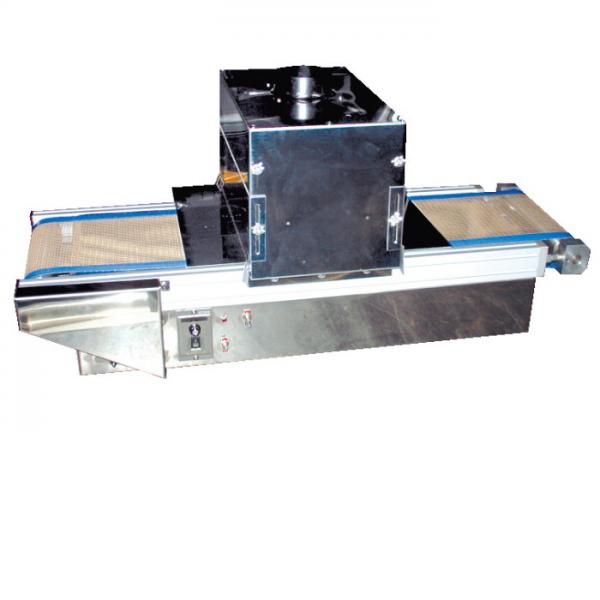

EU3500 UV Cure Belt System

EU3500 UV Cure Belt System


Product ID: EU3500

This UV cure belt system is ideal for solidifying all kinds of UV adhesive. This design utilizes high pressure mercury light tubes with reflectors to deliver a high intensity of UV flood light to a large area. The conveying belt creates a fast and efficient assembly line for your products.

The stainless steel design has the advantage of being durable, while the specialized Teflon conveying belt can prevent unwanted adhesions for a clean working environment. It also has an adjustable gate preventing UV light from escaping. Dimensions for the conveying belt length and UV hood size can be modified to suit your procedures, if you would like more information, please contact us.


See more complete detail
UV Type 1000W 2000W 4000W Velocity Range 0~5M/min Analog KnobForward Reverse Switch
UV Intensity >150mW/cm2 (365nm) Inlet Size W250xH100mm
Wave Length 320nm~380nm Cooling Method Cooling Fan
UV Lifetime 1,500hr Input Power AC220V 1Φ 1500W
Hood Height 20~210mm Dimension W360xL1200xH420mm 45kg
